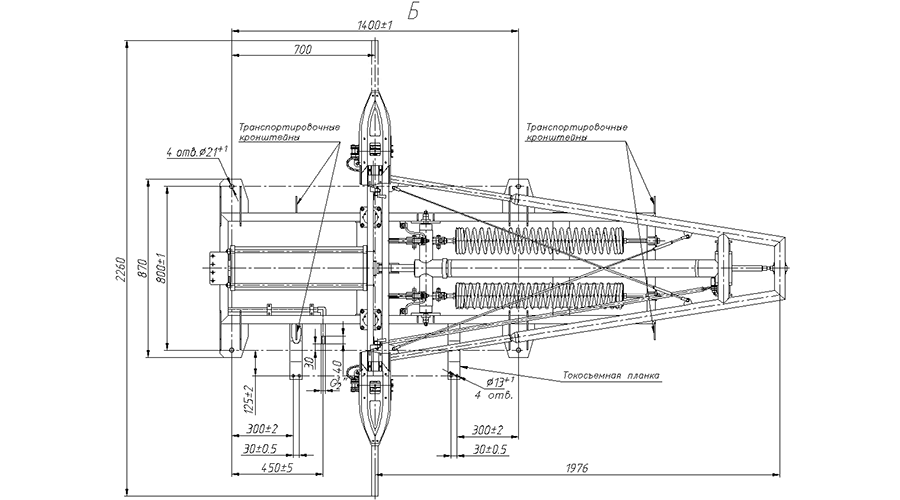

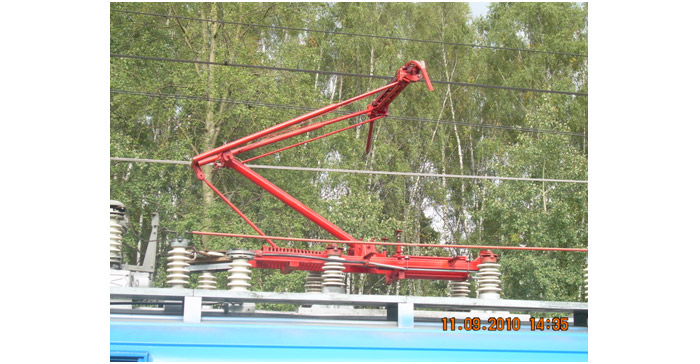

Lightweight Single-Arm Pantograph АТЛ15-ТЭК130-У1
Single-arm pantograph is intended to transfer power from a contact wire to equipment of AC locomotives and that of DC/AC trains capable of running at up to 130km/h.
U1 climatic version per GOST 15150-69.
Pantograph Code:
| АТЛ | - | X | - | X | - | X | - | У1 |
| 1 | 2 | 3 | 4 | 5 |
1 - Lightweight single-arm pantograph
2 - Model serial number
3 - Manufacturer
4 - Limit speed
5- Climatic and installation versions per GOST 15150-69.
Features:
| Rated DC Voltage, V | 3000 |
| Rated AC Voltage, V | 25000 |
| Continuous Current While Running, A min | 750 |

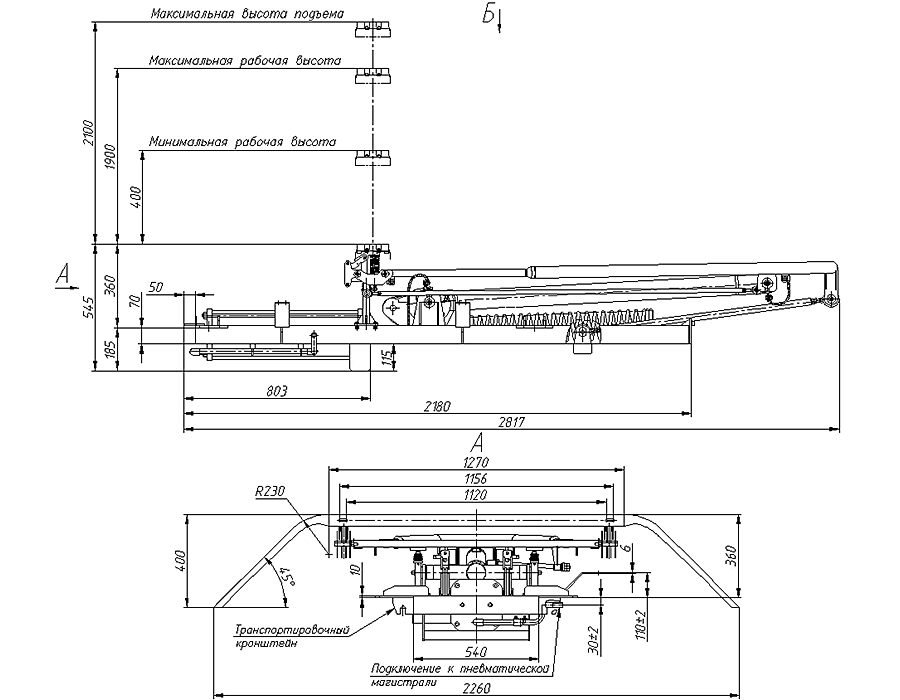

| Operating Heights of Lowered (Fold) Pantograph, mm | 400…1900 |
| Lift Heights of Lowered (Fold) Pantograph, mm min | 2100 |
| (Adjustable) Static Pressure Force within the Lift Height Range: | |
| - Active, min. N | 70 |
| - Passive, N max | 110 |
| Difference between the Minimum and the Maximum Static Pressure Forces measured within the Operating Height Range while One-Way Running, N max | 15 |
| Double Friction Value in Pivots Reduced to the Area of Contact Wire, N | 20 |
| Transverse Stiffness within the Lift Height Range, N/mm min | 17 |
| Longitudinal Stiffness within the Lift Height Range, N/mm min | 12 |
| Reduced Weight of Moving Parts, kg max | 33 |
| Time Required to Reach the Maximum Operating Height under Rated Compressed Air Pressure, sec | 5-8 |
| Time Required to Fold under Rated Compressed Air Pressure, sec | 3-6 |
| Rated Compressed Air Pressure, MPa | 0.5 |
| Pantograph Weight, kg max | 225 |
ATL single-arm pantograph has a number of advantages over ТЛ-13У1 series pantographs:
- Lightweight;
- Lower reduced weight of moving parts that ensures a better handling of wire drops and therefore a better pantograph/wire contact, minimizes contact strip damages (spalls) and improves current collection.
Pantograph is equipped with wear-free atmosphere-resistant bearings allowing for a reliable and lifetime operation.
All said solutions reduce operating costs, extend pantograph service life and slow the wear of strips and contact wire.
